xlabel

Syntax

h = xlabel(str)

h = xlabel(hAxes, str)

h = xlabel(..., property, value, ...)

Inputs

str

Name of the x-axis.

Type: char | string

Dimension: scalar

hAxes

Axis handle.

Type: double

Dimension: scalar

property

Properties that control the appearance or behavior of the graphics object.

Type: string

Dimension: scalar

value

Value of the properties.

Type: double | integer | string

Dimension: scalar

Outputs

h

Handle of the label graphics object.

Examples

Simple xlabel example:

clf;
handle = xlabel('this is xlabel')

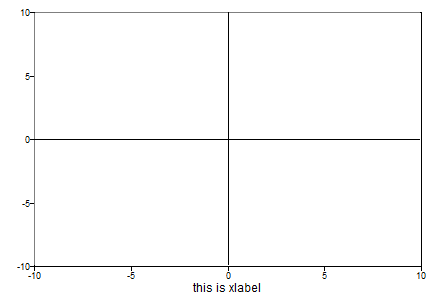

Figure 1. Simple xlabel example

Optional arguments example:

clf;
handle = xlabel('this is xlabel', 'fontsize', 12, 'fontweight', 'bold')

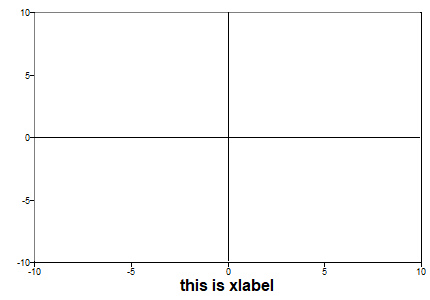

Figure 2. Optional arguments in the xlabel command
