ylabel

Syntax

handle = ylabel(str)

handle = ylabel(hAxes, str)

h = ylabel(..., property, value, ...)

Inputs

str

Name of the y-axis.

Type: char | string

Dimension: scalar

hAxes

Axis handle. .

Type: double

Dimension: scalar

property

Properties that control the appearance or behavior of the graphics object.

Type: string

Dimension: scalar

value

Value of the properties.

Type: double | integer | string

Dimension: scalar

Outputs

h

Handle of the label graphics object.

Examples

Simple ylabel example:

clf;
handle = ylabel('this is ylabel')

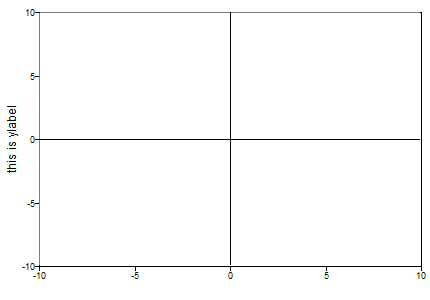

Figure 1. Simple ylabel example

Optional arguments example:

clf;
handle = ylabel('this is ylabel', 'fontsize', 12, 'fontweight', 'bold')

Figure 2. Optional arguments in ylabel command
