New export from FluxMotor to Flux2D / FEMT

The aim of the test “Performance mapping – Sine wave – Motor – Efficiency map - FEMT” is to characterize the machine efficiency map, launching a set of transient simulations which allows very high accuracy.

The resulting model is fully parameterized, and it is built in Flux® 2D environment, transient application.

To run this test, Flux® 2D offers a dedicated toolbox called Flux e-Machine Toolbox (FeMT) which automatically manages the set of simulations and their postprocessing to build complete and accurate maps.

Through this export, the users will obtain a FeMT project ready to be solved. Additionally, the Flux 2D project used by FEMT is also available.

Note: Even if the export process is quite fast, the simulation in FeMT is based on a big set of transient simulations, that usually requires a high computation time. For more information, refer to FeMT user help guide.

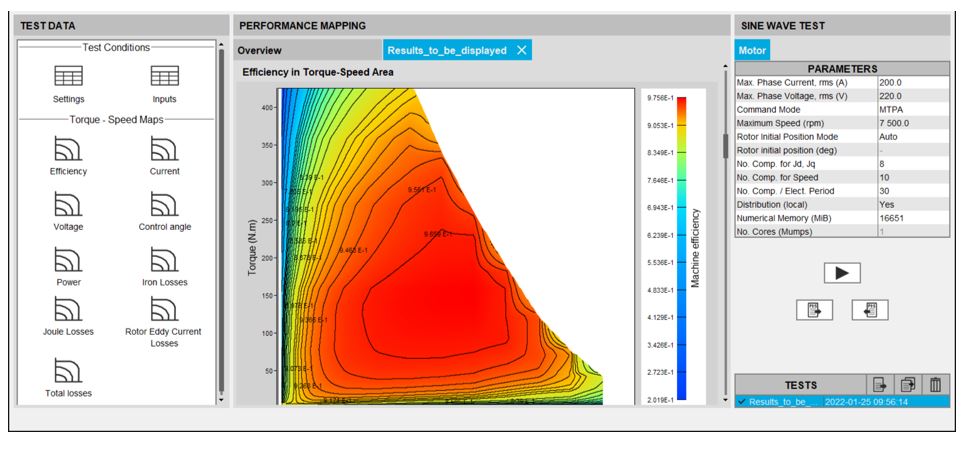

Export a project from FluxMotor to Flux e-Machine Toolbox (FeMT) – Motor Factory – EXPORT area

Note:

There are two buttons to finalize the export of the model:

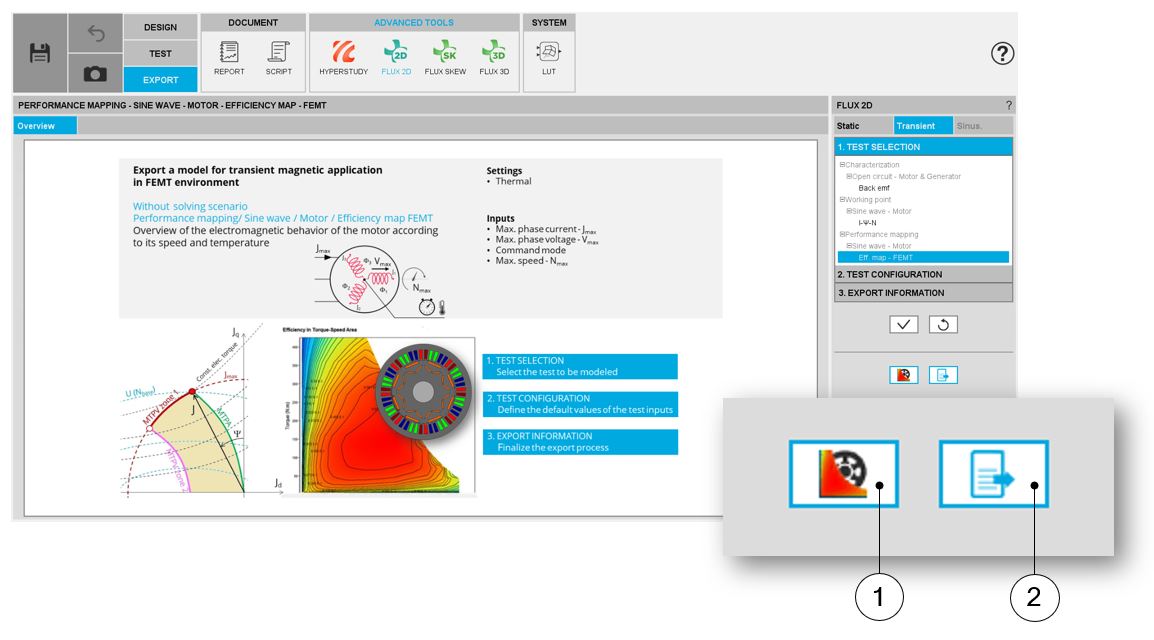

One button (1) allows to launch Flux® 2D (Flux e-Machine Toolbox (FeMT)), directly and automatically, and build the model.

The second button (2) allows to build the python file which can be launched manually in Flux e-Machine Toolbox (FeMT)

Flux e-Machine Toolbox (FeMT)

Warning: The Export to FeMT cannot be applied for machines where the number of parallel paths is not equal to 1. This issue will be fixed in the next version.
