Search the minimum width of objects on certain layer.
For Select Solder Mask Layers, select solder mask layer from layer list.
For Define the Number of Result Display, limit the number of similar fail
results shown.
For Item, specify the item name.
For Checking Layer, select checking layers from layer list.
Attribute (For Selection): For selecting target objects, select the properties
of objects on checking layer. Objects having certain properties will be target
object. Upon double-clicking column, properties list will appear. Among
properties, select properties, to select objects.
Attribute (For Exception): Among target objects, if objects have certain
properties will be excluded in checking. Upon double-clicking column, properties
list will appear. Among properties, select properties, to be used for exception
for objects.

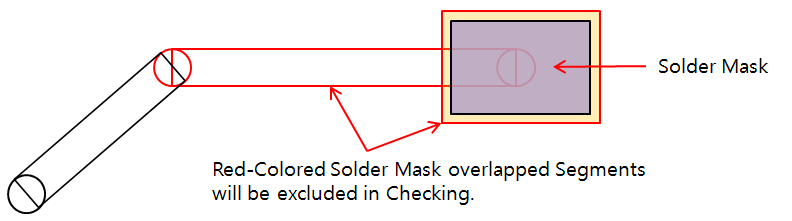

Select SR Open (For Exception) if target objects are
overlapped with solder mask to excluded them in checking.
