Special script function for filling the slots

  1. From the drop-down menu available from the left top part of Motor Factory, it is possible to open a “Debug” dialog box, in which script commands can be written and executed.

    A new command dedicated to the slot filling has been implemented. It allows to define and apply a geometric slot filling (height filling factor).

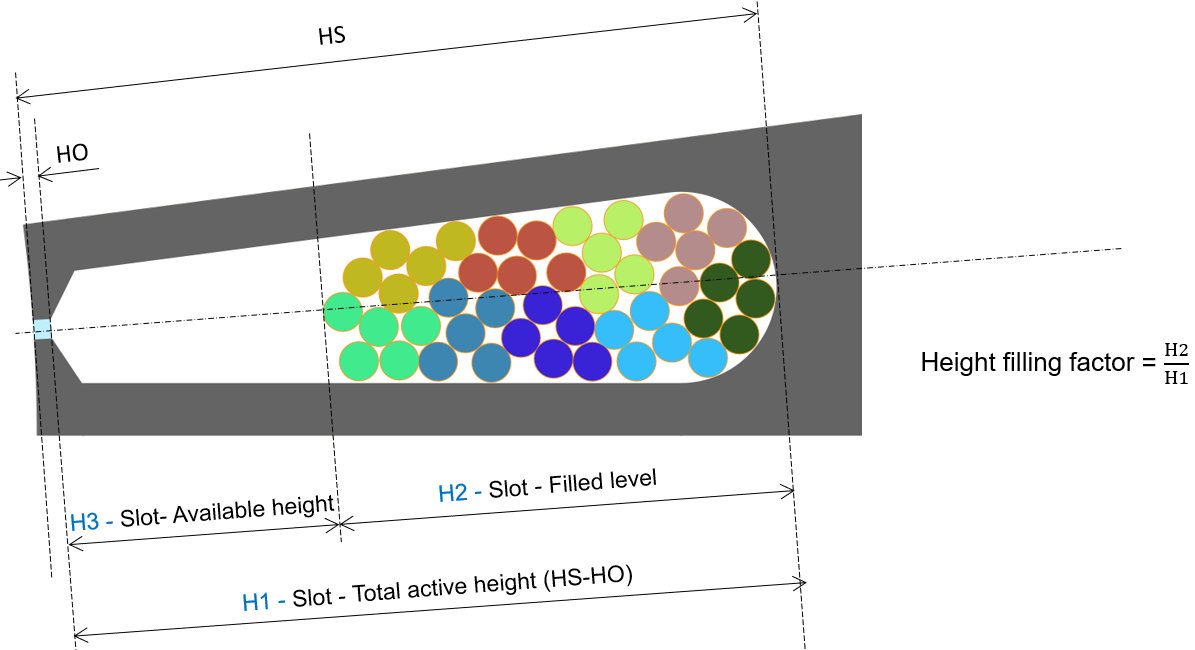

    Here is the definition of the geometric fill factor = Height filling factor
Definition of the geometric fill factor = Height filling factor

The script command is:

setDiameterBasedOnGeometricalFillFactor(geoFF=0.65,noTurnsPerCoil=12,noWiresInHand=4)

In this example, the goal is to find the wire diameter, which allows to define a geometric fill factor equal to 0.65 by considering a coil built with 12 turns and 4 wires in hand (in parallel).

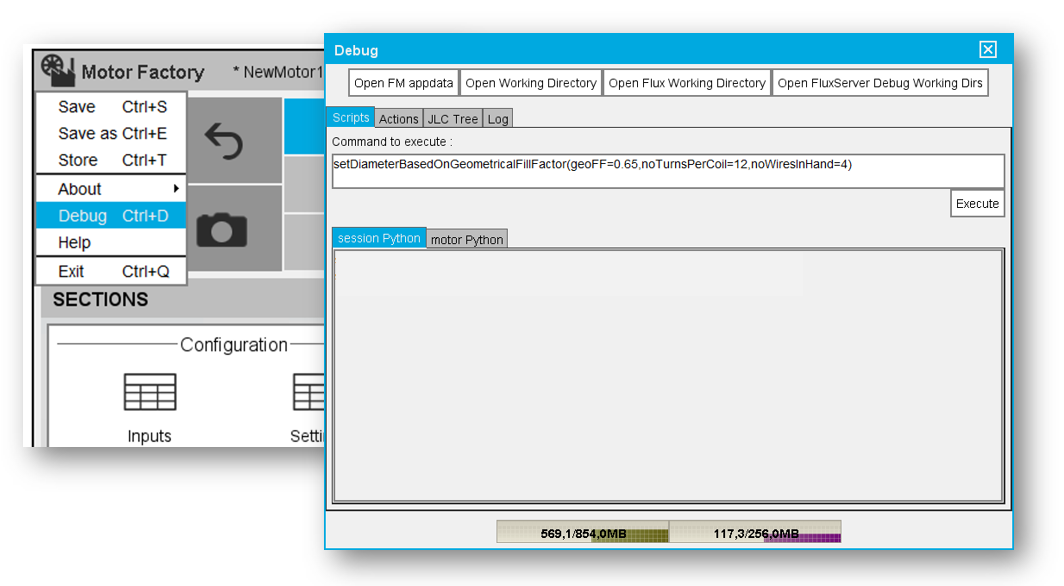

Debug dialog box to execute script commands


Result one gets while applying the command below: setDiameterBasedOnGeometricalFillFactor(geoFF=0.65,noTurnsPerCoil=12,noWiresInHand=4
Note: This script command can run for tooth winding slot a well. In that case the definition of the geometric fill factor = Height filling factor, can be illustrated as below:

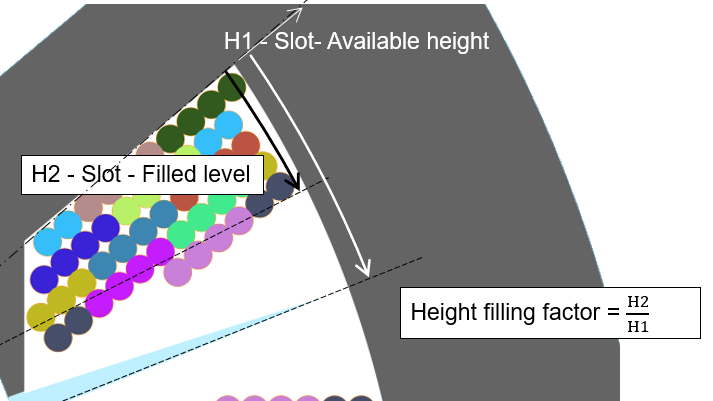

Definition of the geometric fill factor for the tooth winding = Height filling factor


Result one gets while applying the command below: setDiameterBasedOnGeometricalFillFactor(geoFF=0.55,noTurnsPerCoil=12,noWiresInHand=4)
