Tutorial: Adding a Core Component

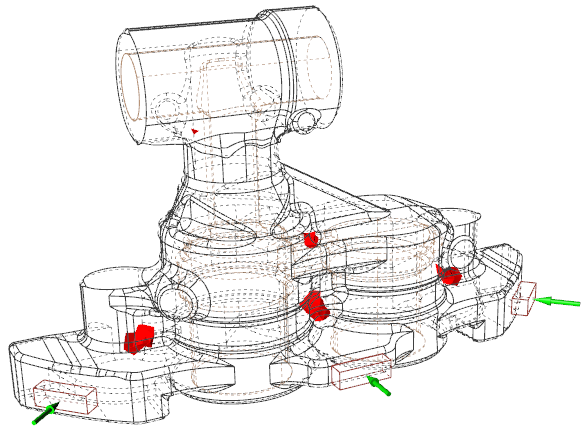

See the difference in porosity of a solid model and the same model with a core.

In this exercise, you will learn how to analyze the effect a sand core has on casting.

Model file is available in the tutorial_models folder in the installation directory in Program Files\Altair\2022.3\InspireCast2022.3\tutorial_models\core.x_b.

Import Geometry

  1. Launch Inspire Cast.
  2. Click Open Model on the Files icon and browse to the tutorial model file in the installation directory, or drag-and-drop the file into the modeling window.


Designate a Casting Part

Select casting geometries with the Cast Part tool.
Important: A cast part must be defined before performing any other operation.
  1. On the Cast Part icon, click Designate Casting Part.

  2. Left-click to select which candidate is a cast part.
    Parts are automatically detected and highlighted based on your cursor position. Since there is a single geometry the entire cast part will be automatically highlighted.
    The selected part is highlighted red.
  3. In the microdialog, select Steel as the material and select 1,4903 as the alloy for the part.
  4. Right-click and mouse through the check mark to exit, or double-right-click.

Set Gravity Direction

  1. On the Cast Part tool, click Set Gravity Direction.

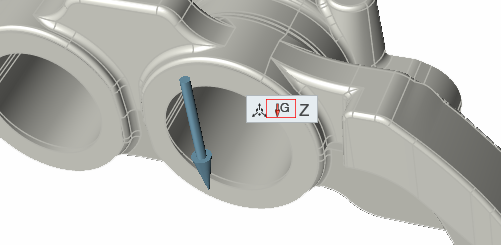

  2. Click the Gravity icon in the microdialog to align the geometry vertically to the normal of a selected surface.


    Note: The gravity direction will always be in the Z-axis.
  3. Click one of the bottom surfaces of the part.

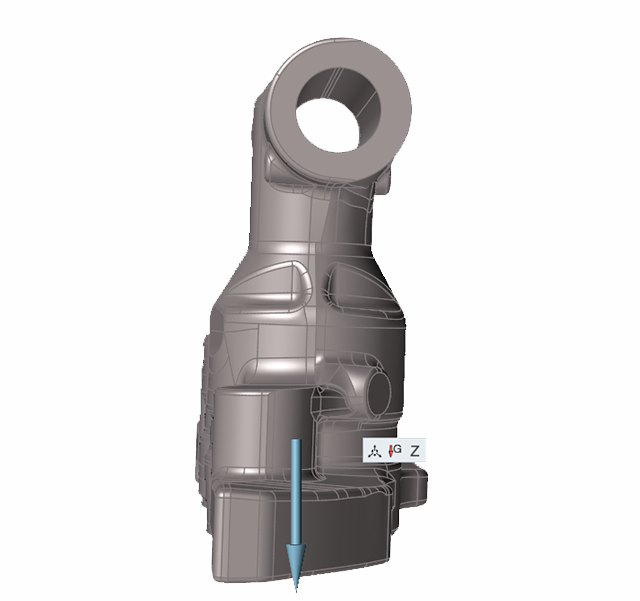

    The part will automatically be positioned with the gravity perpendicular to the selected surface.


  4. Right-click and mouse through the check mark to exit, or double-right-click.

Add a Gate

  1. On the Gate icon, click Add/Edit Gate.

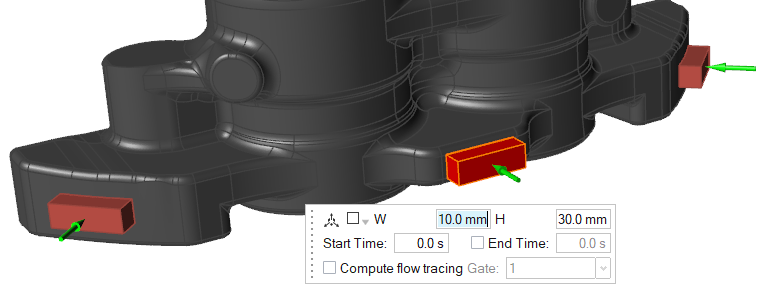

  2. Create three gates: select a surface of the model to place a gate there, and enter the dimensions in the microdialog as shown below.


Add a Core

  1. Click the Components tool.

    Click the Core tool in the secondary tool group.

  2. Double-click to select which candidate is a core and automatically create the core volume.
    Parts are automatically detected and highlighted based on your cursor position.
    The selected part is highlighted red.
  3. In the microdialog, select Silica-Sand as the material.
  4. Right-click and mouse through the check mark to exit, or double-right-click.


Run Analysis

  1. On the Analysis icon, click Run Analysis.

  2. In the Run Analysis dialog, select the Stages tab and enter the Element size manually or define the Average Thickness. You can also select number of cycles in the process by selecting Use cycling.


  3. In the Run Analysis dialog, in the Stages tab, deselect Run a filling analysis.
    Note: For this demonstration, we do not need a filling analysis. Also, since we did not add a gate, a filling analysis will not run.
  4. Select the Advanced tab to manually select mesh factors for components like gate, mold, runner, riser, etc.

  5. Select the Stages tab and click Run.
    Note: The mold will automatically generate when you click Run.
    Note: Once the simulation calculation is finished, a green flag will appear on the analyze icon.

Analyze Results

  1. Click the green flag on the Analyze tool.
    You can also select the run and click View Now in the Run Status window.
  2. Click Solid Fraction under Result Types.


  3. Set the Solid Fraction percentage to 0.70.


    Note: The solid fraction value is set to 0.7 by default. In most cases, this corresponds to the value at which the liquid stops flowing.
  4. Click Play to start the animation.

    In the animation, solidified material (above 0.7) is transparent, while liquid material (below 0.7) is shown colored. Shrinkage porosity is more likely to occur in isolated areas.
  5. Click Demolding under Stage and click Porosity under Result Types.


  6. Set the percentage to 100%.


    Shrinkage Porosity is distributed mostly in 4 different regions at the bottom of the part.
