Mesh elements generation

Definition

The generation of mesh elements (or meshing) is the process of subdivision of lines, faces and volumes into finite elements, carried out by Flux.

Meshing

The mesh generation is carried out in the following way:

Stage	Description	Command
1	Meshing the lines	Mesh lines
2	Meshing the faces	Mesh faces
3 (for 3D)	Meshing the volumes	Mesh volumes

Note: The command Mesh Domain permits to perform the 3 phases in a row. When the meshing time is consistent in 3D, it is advisable to perform phases 1 and 2. If the surface mesh is not satisfactory, modify the adjustment and start again the mesh generation before passing to phase 3.

Mesh

To mesh:

Step	Action
1	Activate the Mesh command (see next block)
→	Flux generates mesh elements.
→	In the graphic zone, Flux displays nodes after meshing the lines face elements after meshing the faces.

Step

Action

1

Activate the Mesh command (see next block)

→

Flux generates mesh elements.

→

In the graphic zone, Flux displays

nodes after meshing the lines
face elements after meshing the faces.

Activate the command

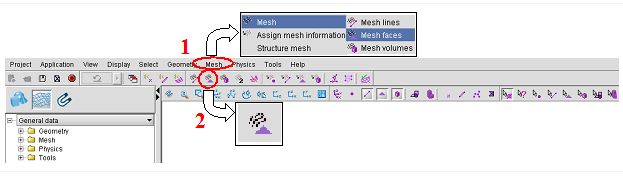

To activate the Mesh command, choose one of the methods presented in the figure below:

Note: It is possible to activate the Mesh faces / volumes command without meshing the lines / faces. In this case, the line / face mesh will be generated automatically and implicitly.
