Ref Name Ordering

Check the reference name’s placed order.

  • Reference & Name Placement Checking: Check the target components’ reference names and ordering.
    • Target Component Group Selection: Select target component group from the list.

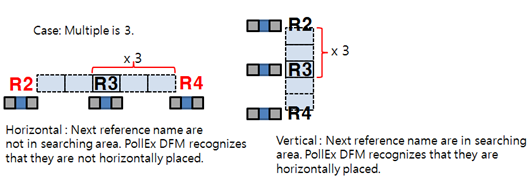

    • Multiple of Name Area for Horizontal Searching: Check if reference names are horizontally placed within the area of multiple pivot reference names.
    • Multiple of Name Area for Vertical Searching: Check if reference names are vertically placed within the area of multiple pivot reference names.


      Figure 1.
  • Component Placement Order
    • Left to Right: Checks if reference names are placed as a direction, left to right.
    • Right to Left: Checks if reference names are placed as a direction, right to left.
