Review Loadcases

Review loadcases present in the model.

You can review and verify all the loadcases in the model and choose which loadcase to export in the OptiStruct solver file.

  1. From Analyze group, select Review All Load Cases.
    Figure 1.
    Note: Depending on the type of event, the loadcases will be populated in the respective tabs of the table.
    The Load Step Table dialog opens containing all the loadcases present in the session.

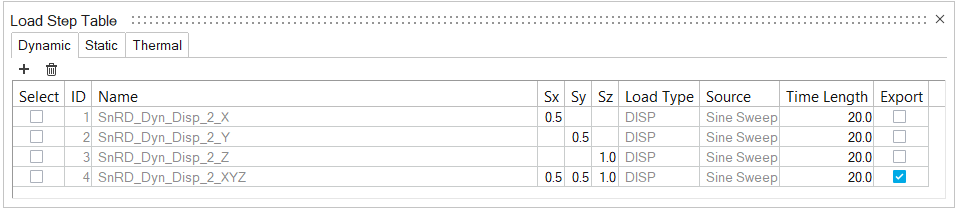

    Figure 2.
  2. Enable the checkboxes for the required loadcases under Export column.
    This will export only the selected loadcase to the OptiStruct solver file.
  3. Click Close.
